This is the replacement Cam/VTX for the BetaFPV 65x/75x Whoops

Z02 AIO camera VTX is the newest video transmitter by BETAFPV. It has 2 great improvement since. First, switchable power output between 0mW, 25mW and 200mW. Second, Smart Audio is included and pilots could control the VTX via your radio transmitter.

Note: This VTX can output on certain channels which may not be Legal in some countries. Please familiarise yourself with the laws before flying and ensure you are on the appropriate channel and output power.

Specifications :


Features:

  • Switchable power includes 0mW (Pitmode), 25mW and 200mW.
  • Smart Audio function is included. The flight controller can communicate with the video transmitter using the audio line in. It allows the flight controller to know what frequency and power the VTX is using, and is also able to change it.
  • Fixed 20° tilt camera mount. At this angle the pilot can still see everything ahead in full-blown fast forward flight.
  • Dipole whip high gain antenna


SPECIFICATION

  • Output power: 0mW, 25mW and 200mW (Adjustable)
  • Supply Voltage: 2.9-5.5V

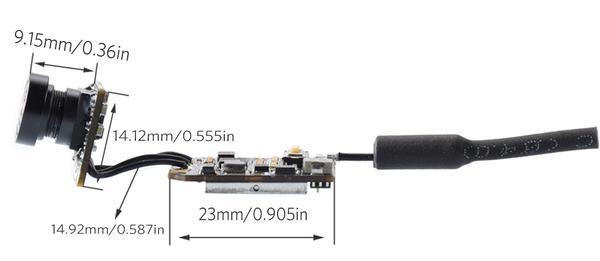

  • Size : 27*17*14 mm
  • Weight: 4.7g
  • Antenna: Linear Dipole

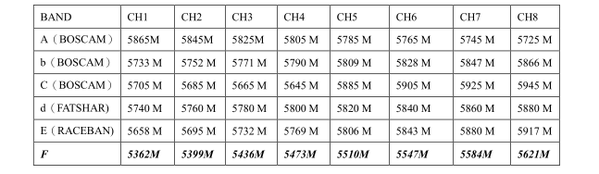

  • Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362~5945MHz
  • TV System: NTSC
  • Field of view: 100-120 degrees with 1/4 lens.

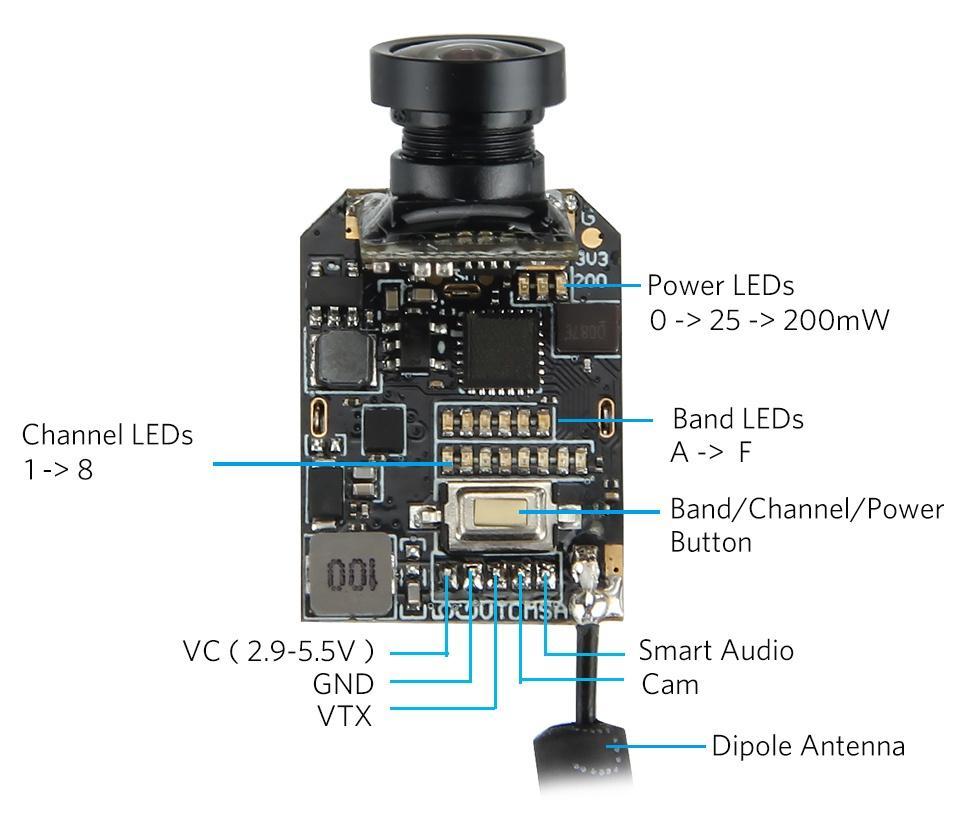

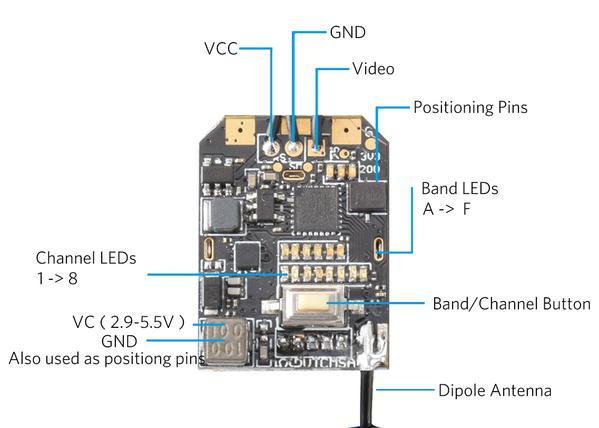

HOW TO CHANGE FREQUENCY & CHANNEL & POWER

  • Frequency group A~F selected still touch up to 2 secs
  • Channel ch1~ch8 selected with short touch.
  • Power switch with long touch up to 5 secs.

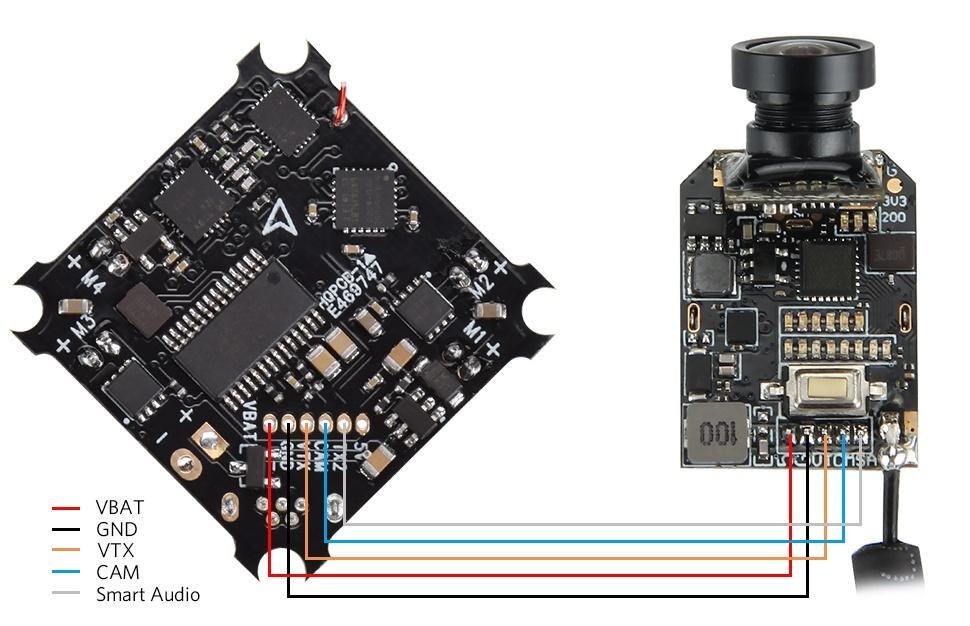

In default, the connectors of the Z02 is compatible with BETAFPV FC boards like F3 V2, F4 etc.



Package Includes:

  • 1 * BETAFPV Z02 FPV Camera
  • 1 * Holder
  • 2 * Head pins (Using to connect with newest BETAFPV FC boards)
