Beta FPV F4 2S 65x/75x Brushless Flight Controller and 6A ESC

BetaFPV
65x/75x FC/ESC
Earn 50 reward points
£0.00 £49.99
L
5+
In stock, ready to dispatch
QTY:
Out Of Stock
Add To Wishlist

This F4 flight controller and ESC are for the 2S whoop Beta65X and Beta75X series. It will turn the brushless whoop into a beast.

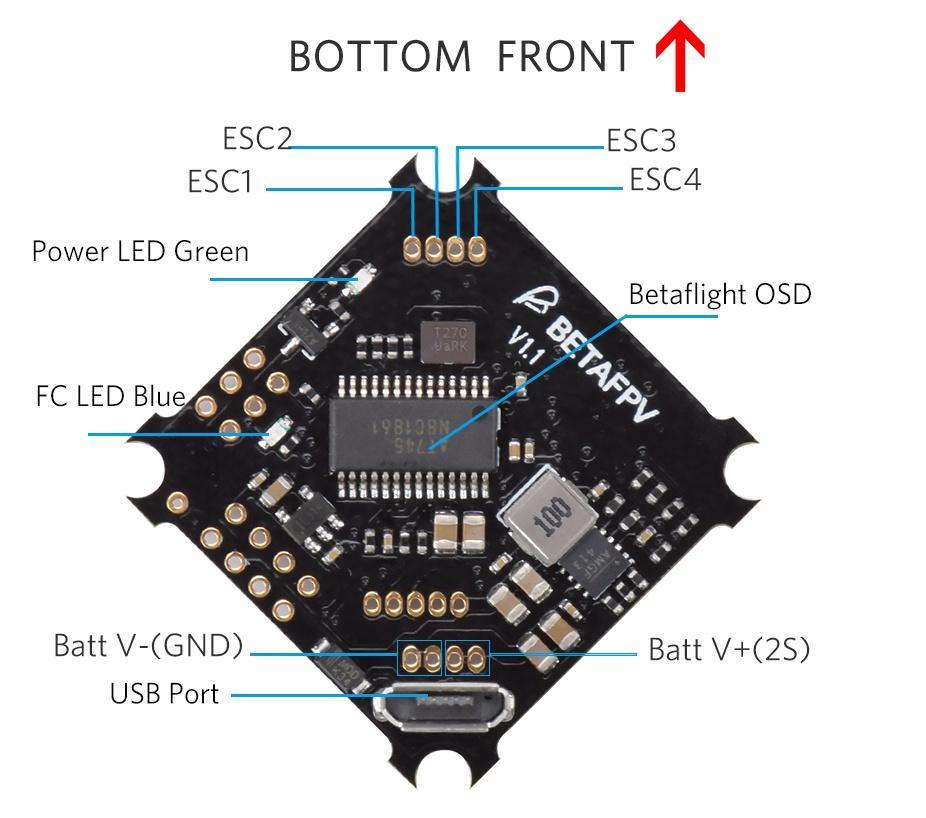

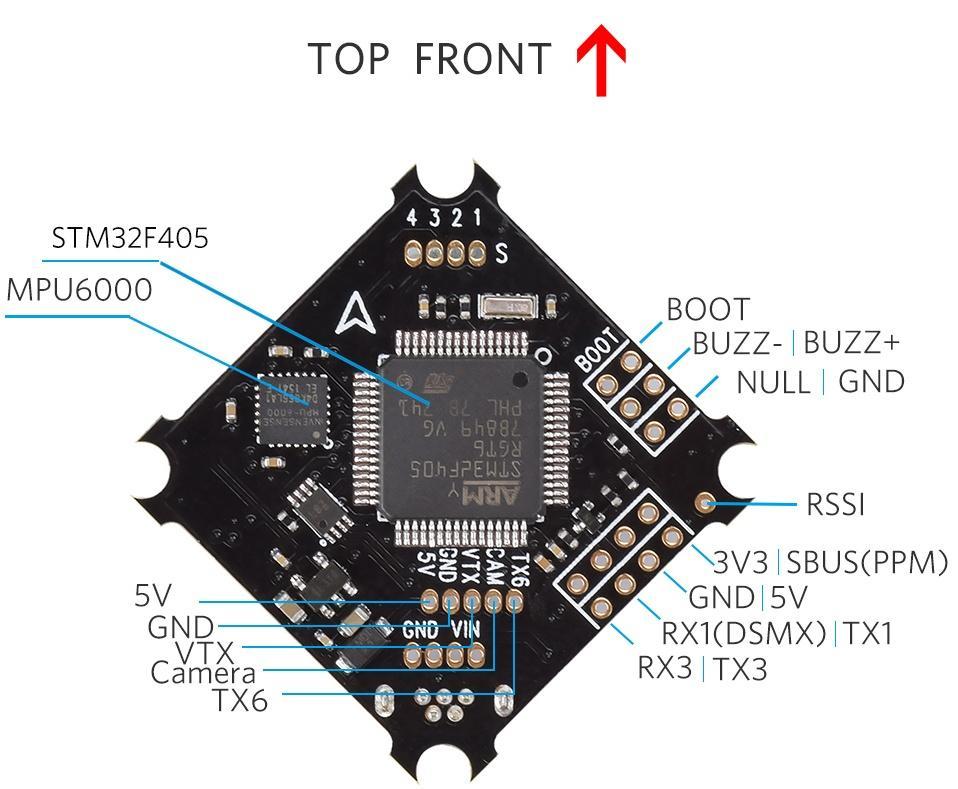

Specifications of the Flight Controller:

  • CPU: STM32F405 (Overclock to 240MHz)
  • Six-Axis: MPU6000
  • Size: 26mm x 26mm, whoop mounting pattern
  • Firmware version: Betaflight 3.5.0 OMNIBUSF4SD (OBSD)
  • OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
  • TX02 RX02 ports is available, so that it could support TBS micro receiver
  • RSSI ports is available
  • Buzzer solder pads
  • Weight: 2.7g




Specs of the ESC:

  • Support BLheli/BLHELI_S suite Pass-through ready
  • Support PPM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
  • Input voltage: 2S lipo
  • Cotinue current: 6A
  • Peak current: 10A
  • Firmware: BLHELI_S
  • Processor: SILABS EFM8BB21F16G
  • Motor Connectors: 1.5mm header pins connector

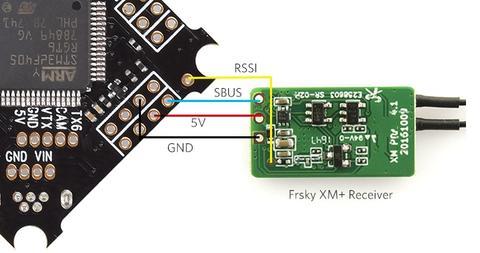

Recommended Receiver Connections

All the ports are available on this board. So that you could connect any receiver you want on the board. For example.

  • Frsky XM/XM+ Receiver
  • TBS receiver
  • DSMX receiver



Package Includes:

  • 1 * F4 2S brushless flight controller
  • 1 * 4in1 6A ESC board
  • 4 * M1.2x4mm screws
  • 4 * M1.4x5mm screws
  • 4 * Anti-vibration rubber dampers
