DSMX Micro Receiver

BetaFPV
BetaFPV DSMX Receiver
Earn 12 reward points
£0.00 £11.99
L
1
In stock, ready to dispatch
QTY:
Out Of Stock
Add To Wishlist

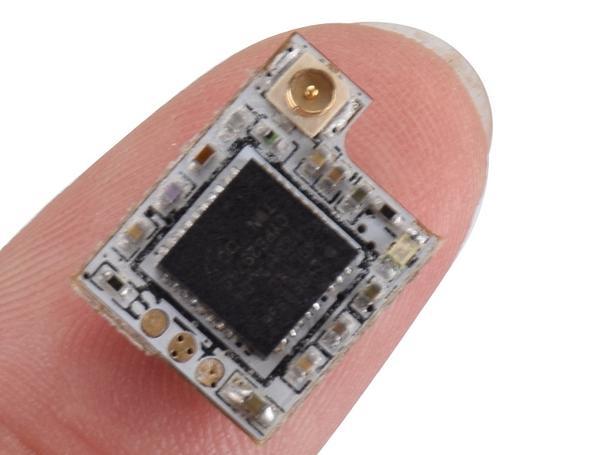

A tiny DSMX receiver for your micro builds, practically the size of a Micro SD Card!

SPECIFICATIONS:

  • Input power: 5V
  • Frame rate: 22ms/11ms
  • Resolution: 2048
  • Working current: 60MAh
  • Weight: 0.6 g
  • Receive sensitivity: -108DBM
  • Delay: <15ms
  • Antenna length: 80MM Antenna
  • Data format: DSMX
  • Distance: 300m
  • Channels: support 6-8 channels
  • Compatible Transmitters: DSM2 / DSMX series of remote transmitter

BINDING PROCEDURE:

  • Connect the receiver to your Flight Controller and run Betaflight. On Betaflight GUI, Click on the 'Ports' Tab and make sure Serial RX is selected on UART1. Then click the Save and Reboot button in the lower right corner.

  • In the Configuration tab, for Receiver Mode, choose Serial_based receiver (SPEKSAT, SBUS, SUMD); Serial Receiver Provider, choose SPEKTRUM2048. And click the Save and Reboot button in the lower right corner.

  • Re-connect and select CLI tab then type: "set spektrum_sat_bind=9", press enter then type save and enter again.

  • Disconnect all power to the receiver. Then connect a battery to the flight controller. The light on the receiver will flash rapidly, which means it's in bind mode.

  • Turn on the radio and enter bind mode.



Note: The DSMX micro receiver (white colour) shown above has now been replaced by the new DSMX micro receiver (black colour). The binding procedure of both micro receivers is same.
