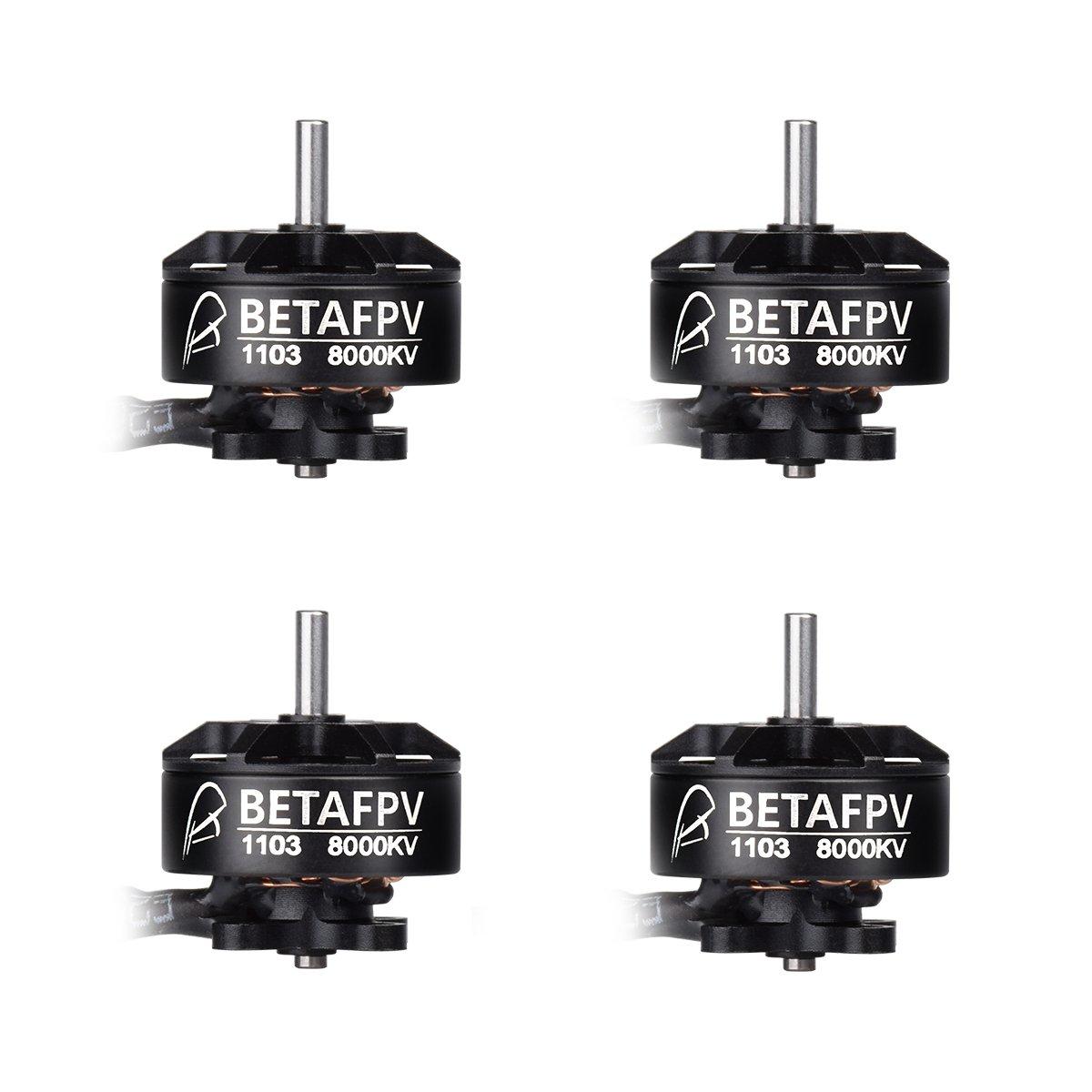

BETAFPV 75X 1103 8000KV BRUSHLESS MOTOR

Lightest 1103 motors in the world.

8000KV- specially made for Beta75X 3S, also suitable for most 3S whoop on the market, provide you with much more thrust.

A header pins connector is included. So no soldering needed, just plug and play.

Note:WE DO NOT recommend the 0802 11000KV motors for 3S power. If you try this combo, the motors will overheat and burn (maybe the ESC). As a result, it will cause permanently damage on the motor or ESC.

BULLET POINTS

• 1103 brushless motors are customized for Beta75X. 8000KV is the best recommendation for Beta75X 3S.
• Shaft diameter is 1.5mm, convenient installation with Micro JST-1.25 3-pin connector.
• Compatible with 2S and 3S lipo battery, focusing on power, efficiency and durability.

RECOMMENDED PARTS

• Propellers: 40mm 4-blade props (1.5mm shaft hole)
• Frame: Beta75X frame
• FC & ESC: F4 2-4S AIO Brushless FC 12A

SPECIFICATION

• Height: 14mm
• Weight: about 3.8g (8000KV)
• Shaft: φ1.5mm
• Motor Mount Holes: M1.6 on Dia 8.5mm
• KV (rpm/V): 11000
• Plug: Micro JST-1.25 3-pins connector

PACKAGE

• 4 * BETAFPV 1103 Brushless Motors ( 8000KV)
•  1 * Spare pack of M1.6*4 screws
