BetaFPV 65x/75x Frame

BetaFPV
BetaFPV 2s Frame
Earn 0 reward points
£0.00 £4.99
L
In stock, ready to dispatch

Size

QTY:
Out Of Stock
Add To Wishlist

This Listing is for both the 2s 65x and 75x Frame

This Beta75X frame is custom for 75mm 2S whoop. This frame supports 110x motors. Also it has a custom battery slot to support 2S battery use. The FC mounting columns still match the whoop style FC boards. At the same time, we would like to keep it durable and light enough for a 2S whoop beast.

 Specifications:

  • Material: Clear plastic

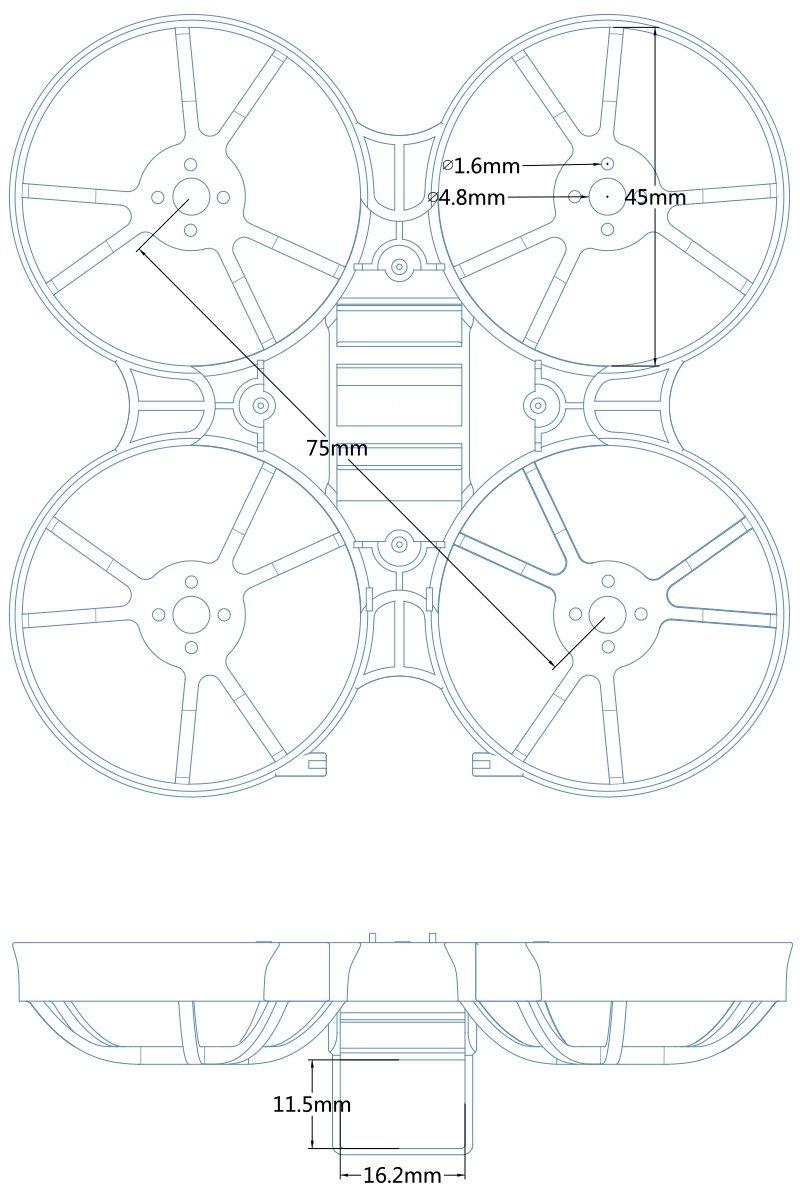

  • Diagonal motor to motor distance: 75mm
  • Motor mounting hole: for 110x series motors
  • FC mounting hole: fully compatible with whoop style FC board mounting pattern, 26mm x 26mm
  • Battery slot size: 11.5x16mm, for BETAFPV 300mAh battery

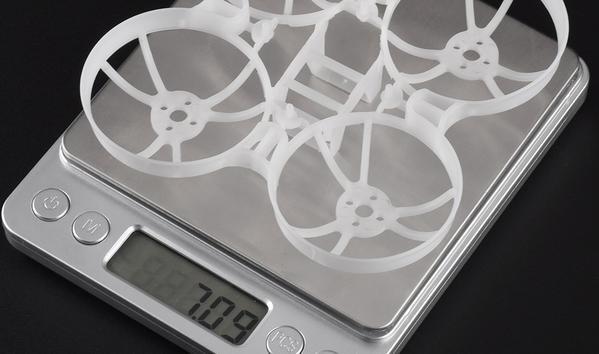

  • Weight: 7.1g

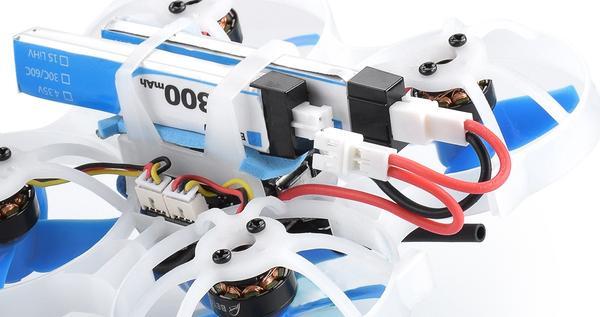

Battery Slot:

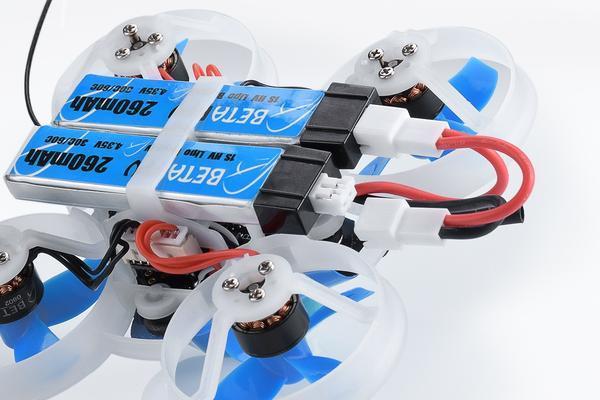

In default, the battery slot is designed for 2S 300mAh battery. If you already have many 1S whoop style batteries and want to use the them on the this frame, what shall we do? As show below, with the help of this adapter, 2 x 1s Lipo HV whoop style batteries are inserted in the slot and can be used without an issue.

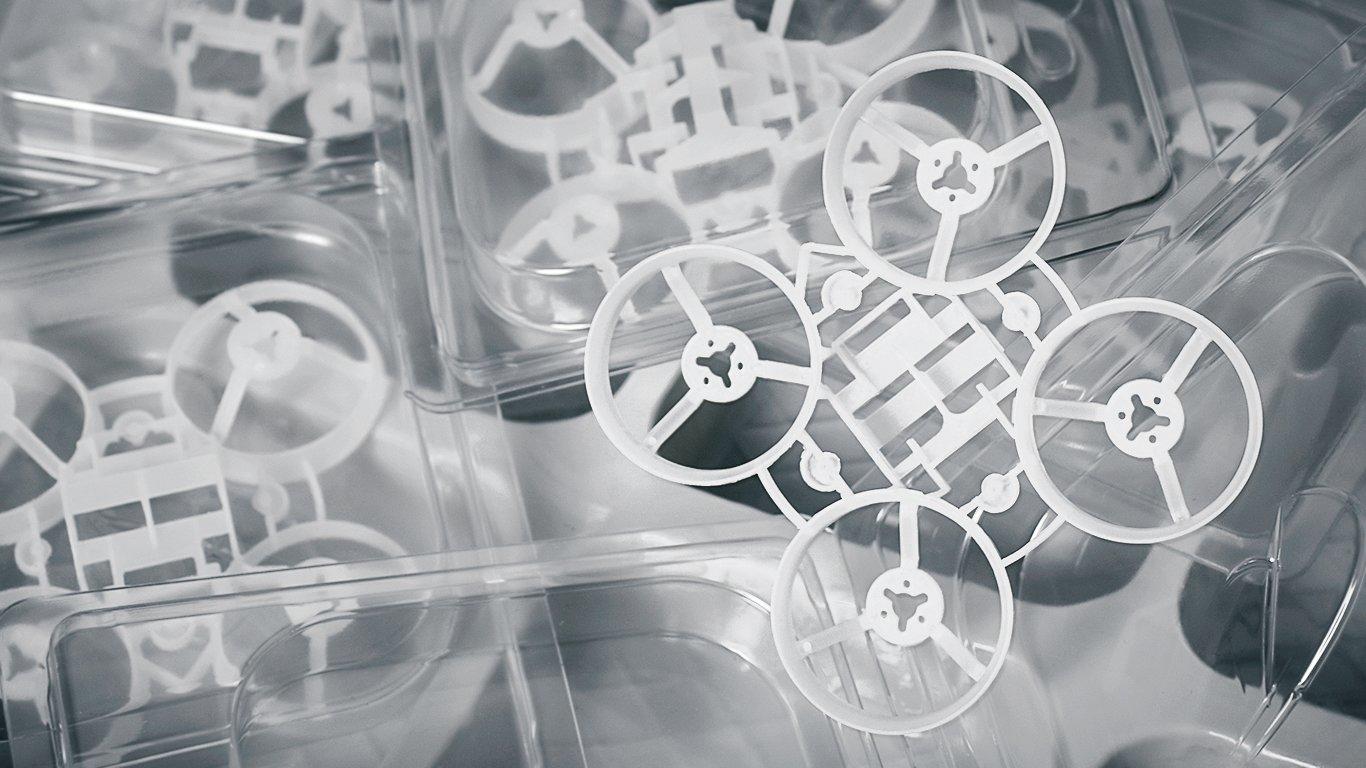

This Beta65X frame is custom for the 65mm 2S whoop. This frame supports 0x0x motors, like 0802, 0705 etc. Also it has a custom battery slot to support 2x 1S whoop style batteries. The FC mounting columns still match the whoop style FC boards. At the same time, we would like to keep it durable and light enough for a 2S whoop beast.

PLEASE NOTE: Due to the battery compartment taking two 1s 255 HV lIpo's, we advise when purchasing the 65X frame that you also order THIS PIGTAIL



 Specifications:

  • Material: Clear plastic

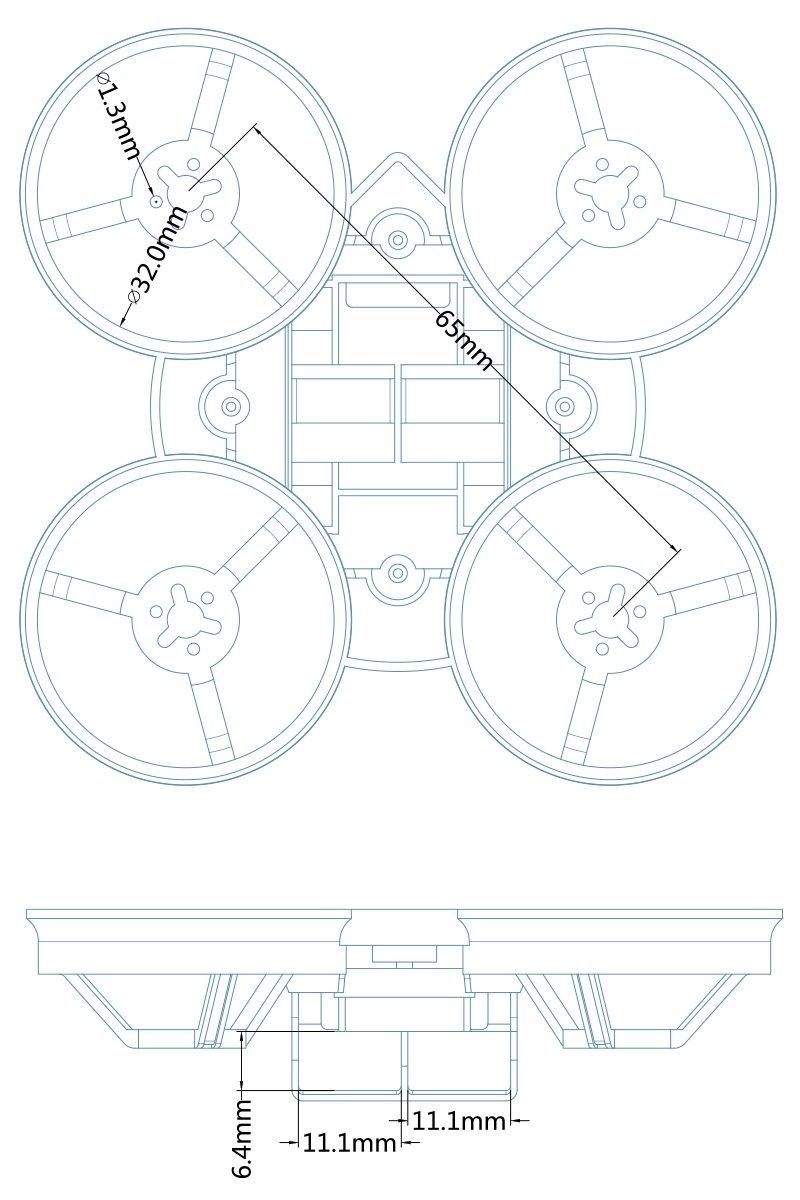

  • Diagonal motor to motor distance: 65mm
  • Motor mounting hole: for 0x0x series motors, like 0802, 0705 etc
  • FC mounting hole: fully compatible with whoop style FC board mounting pattern, 26mm x 26mm
  • Battery slot size: for 2pcs 1S whoop style batteries

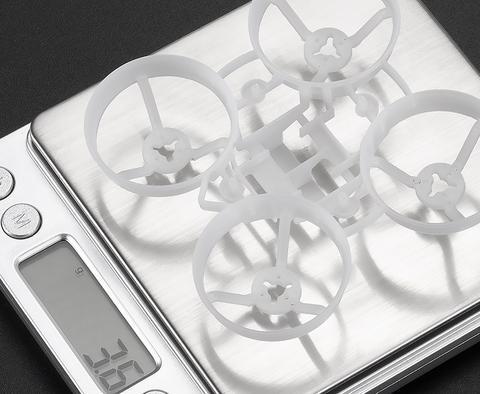

  • Weight: 3.6g




Package Includes Either:

  • 1 * Beta65X 2S Whoop frame
  • 1 * Beta75X 2S Whoop frame
