Beta75X 2S Whoop

BetaFPV
BetaFPV 75x
Earn 130 reward points
£0.00 £129.99
L
In stock, ready to dispatch

Receiver

With LED?

QTY:
Out Of Stock
Add To Wishlist

This is a new era for Whoops. this 2S powerhouse has the ability to fly real acro, like a larger quad, but is still small enough, safe enough, and quiet enough to fly anywhere.

Please select both options to see stock levels.

Please note: If you purchase the 75x with the LED, you will have to solder it on and have spare wires at hand. Then carry out CLI resourcing. Scroll to the bottom for more info

Is this what we've all been waiting for? The power of a 5 inch racing quad in the size of a Tiny Whoop?

With the high performance STM32F405 processor this quad feels silky smooth in the air. The Flight Controller is flashed with Betaflight Ominibus 3.5.0 firmware.

A total weight of 41g give pilots a good balance of weight and a nice punch on the 2S battery.

The whole quad is completely assembled, no soldering or tinkering required. These are the lightest 1103 11000KV motors with cable connectors you can get. Just plug and play, set your switches in Betaflight and away you go!

These motor shafts are 1.5mm in diameter, so you can only use the 40mm propellers.

Specifications:

Flight Controller:

  • CPU: STM32F405
  • Six-Axis: MPU6000
  • Size: 26mm x 26mm, whoop mounting pattern
  • Firmware version: Betaflight OMNIBUSF4SD (OBSD) 3.5.0
  • OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
  • Smart Audio port is available for radio control VTX

ESC:

  • Support BLheli/BLHELI_S suite Pass-through ready
  • Dshot600 in default
  • Input voltage: 2S lipo
  • Continue current: 6A
  • Peak current: 10A
  • Firmware: BLHELI_S
  • Processor: SILABS EFM8BB21F16G

Z02 AIO Camera VTX:

  • Output power: 0mW, 25mW and 200mW (Adjustable)
  • Smart Audio function is included for radio control
  • Antenna: Dipole ANT
  • Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362~5945MHz
  • TV System: NTSC
  • Field of view: 100-120 degrees with 1/4 lens

PROPS OUT :

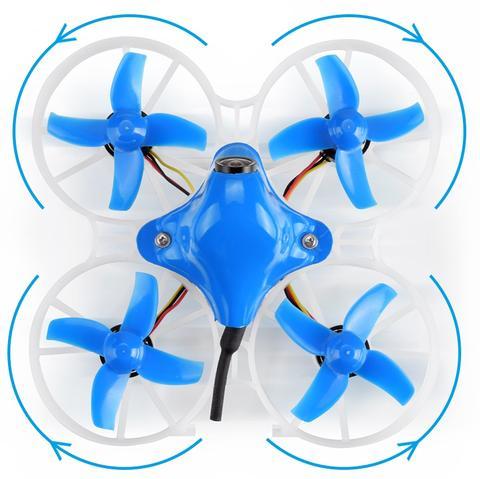

The Beta75X also comes with "props out" in default. Why do we need "props out" direction?

In the default Betaflight props direction (Props in), the quadcopter dips and "washes out" in hard corners. With reversed props or "props out", no more dipping even in hard cornering!


Power cable:

We supply the 75x with the XT30 pigtail. However we will soon be selling the conversion kit to make this run on your original Tiny Whoop packs too. But it is recommended to use the 2s Lipo with the XT30 connector.


Z02 AIO Camera/VTX

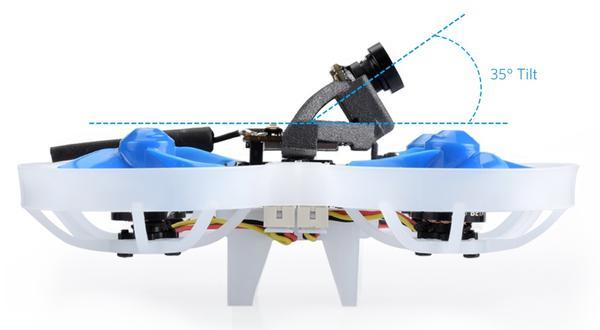

The AIO camera VTX on the Beta75X is a custom version of the Z02. The VTX board and camera board are split and a 35 degree camera mount for fast flying. At the same time, it has all the other functions of the Z02 camera, like output power switchable between 0mW (Pitmode), 25mW and 200mW. Smart audio is available for VTX remote control in default.


Here you can download the STL file for the camera mount.

Package Includes:

  • 1 * Beta75X BNF 2S Whoop Quadcopter with XT30
  • 1 * Spare 40mm 4-blades props (2CW+2CCW)
  • 1 * 300mAh 2S 35C-75C battery
  • 1 * Spare Canopy

PLEASE NOTE: THE LED DOES NOT COME FITTED

To use the LED with the Beta75x, you must first resource the Buzzer pin to become the LED pin in the Betaflight CLI. To do this please follow the steps below.

Connect your Flight Controller to Betaflight and in the Bottom left hit the CLI tab. - It's good practice to make a backup of your CLI before making any changes. (Type "dump" and copy the text to save it externally).

TYPE "RESOURCE LED_STRIP 1 A09" - PRESS ENTER

TYPE "SAVE" - PRESS ENTER

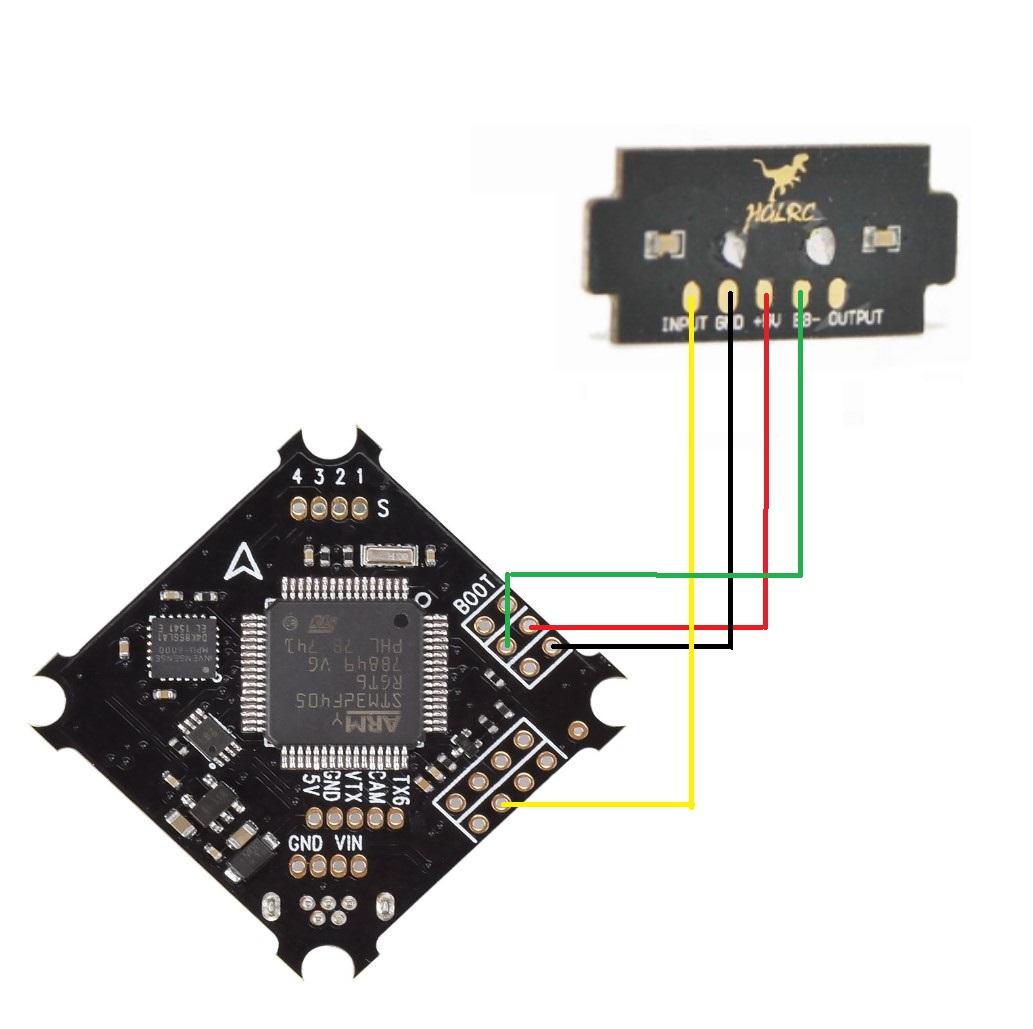

You can Disconnect your Flight controller and solder the LED like so;


Once complete, you can now configure your led in the LED tab in betaflight (You may have to connect a battery when doing so to test your LED functionality).

If you require a video to show you how to do all of this, CLICK HERE for the video link.
