Beta65X 2S Whoop

BetaFPV
Beta 65x
Earn 120 reward points
£0.00 £119.99
L
In stock, ready to dispatch

Receiver

QTY:
Out Of Stock
Add To Wishlist

This 2S powerhouse has the ability to fly real acro, but is still small enough, safe enough, and quiet enough to fly anywhere.

Please Note: We highly recommend using an XT30 pigtail instead of using the 2x 1s configuration. We've found that the 1s HV lipo's get too hot and are getting damaged after just a couple weeks of use.

We will be getting 7.4v 333mah Lipo's fitted with an XT30 just for these whoops. All you have to do is swap the pigtail to an XT30 and cut the middle tab in the battery tray of the Beta65x

Is this what we've all been waiting for? The power of a 5 inch racing quad in the size of a Tiny Whoop?

With the high performance STM32F405 processor this quad feels silky smooth in the air. The Flight Controller is flashed with Betaflight Ominibus 3.5.0 firmware.

A total weight of 29g give pilots a good balance of weight and a nice punch on the 2S battery.

The whole quad is completely assembled, no soldering or tinkering required. These are the lightest 0802 17500KV motors with cable connectors you can get. Just plug and play, set your arm switches in Betaflight and away you go!

For durability, the motor shafts are 1.0mm in diameter, so you must drill out your Original Tiny Whoop props to fit these motors. We will be selling the small drill bits soon!

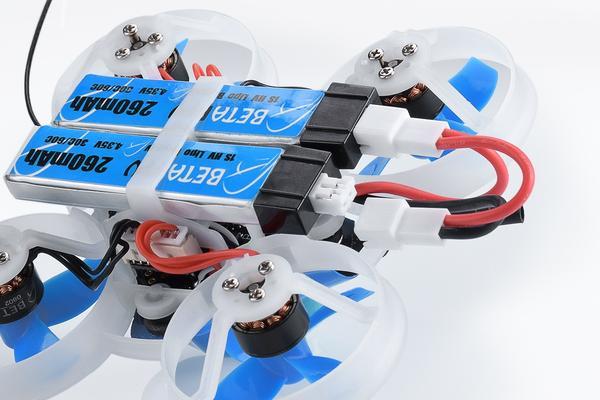

TWO IMPORTANT NOTES! - This Whoop uses two of your original Tiny Whoop batteries in series to make it a 2s pack. You must use the same capacity battery when flying, for example DO NOT use a 205mAh and a 255mAh together to fly, they must be of the same capacity or you will damage the lower rated Lipo! Secondly, this VTX can output on certain channels which may not be Legal in some countries. Please familiarise yourself with the laws before flying and ensure you are on the appropriate channel and output power.

Specifications :

Flight Controller:

  • CPU: STM32F405
  • Six-Axis: MPU6000
  • Size: 26mm x 26mm, whoop mounting pattern
  • Firmware version: Betaflight OMNIBUSF4SD (OBSD) 3.5.0
  • OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
  • Smart Audio port is available for radio control VTX

4 in 1 ESC:

  • Support BLheli/BLHELI_S suite Pass-through ready
  • Dshot600 in default
  • Input voltage: 2S lipo
  • Continue current: 6A
  • Peak current: 10A
  • Firmware: BLHELI_S
  • Processor: SILABS EFM8BB21F16G

Z02 AIO Camera VTX :

  • Output power: 0mW, 25mW and 200mW (Adjustable)
  • Smart Audio function is included for radio control
  • Antenna: Dipole ANT
  • Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362~5945MHz
  • TV System: NTSC
  • Field of view: 100-120 degrees with 1/4 lens

PROPS OUT :

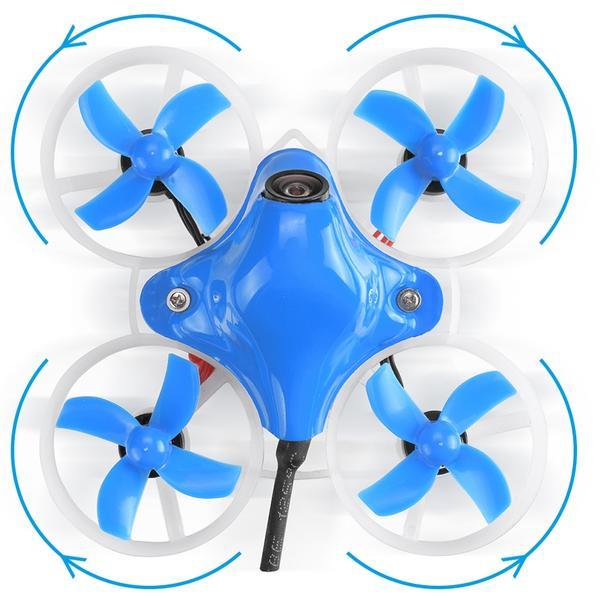

The Beta65X also comes with "props out" in default. Why do we need "props out" direction?

In the default Betaflight props direction (Props in), the quadcopter dips and "washes out" in hard corners. With reversed props or "props out", no more dipping even in hard cornering!


Power Cable :

There is only one option for the Beta65X battery - PH 2.0, the standard Tiny Whoop connector. Any Tiny whoop battery that currently fits the cockroach or stock unductrix frames will fit, BetaFPV supplies two 260mAh lipo's but you can still use our MyLipo 255/205 packs.



Z02 AIO Camera/VTX

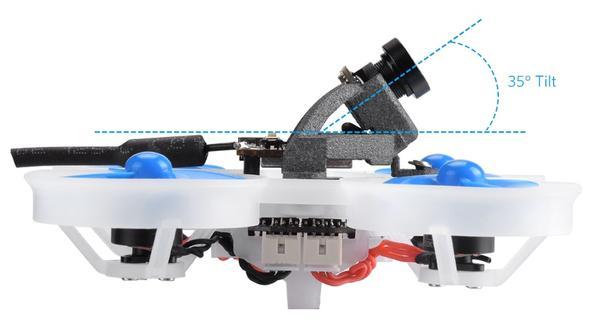

The AIO camera VTX on the Beta75X is a custom version of the Z02. The VTX board and camera board are split and a 35 degree camera mount for fast flying. At the same time, it has all the other functions of the Z02 camera, like output power switchable between 0mW (Pitmode), 25mW and 200mW. Smart audio is available for VTX remote control in default.


Here you can download the STL file for the camera mount.

Package Includes:

  • 1 * Beta65X BNF 2S Whoop Quadcopter
  • 1 * Spare 31mm 4-blades props (2CW+2CCW)
  • 1 * Spare Canopy

View Product Video
